Gaomi Eastland Oilwell Machinery Co.,Ltd
Fluid End Expendables & Accessories
Liner: hy-chrome liner, zirconia liner, ceramic liner, chrome-plated liner, hardned liner
Piston: nitrile rubber piston, supreme piston, polyurethane piston, urethane bonded piston, green duo piston, blue lightning piston, white lightning piston
Valve & Seat: three-web valve seat, four-web valve seat, full open valve seat, Bomco type valve seat, NOV valve seat, Mission valve seat, Southwest valve seat
Pulsation Dampener: KB45,KB75,PD45,PD55,K10,K20
Module: “I” shaped module, “L” shaped module, suction module, discharge module
Spare parts: Upper and lower Valve Guide, Liner Gasket, Piston Rod, Rod Clamp, Valve Cover, Valve Cover Seal, Cylinder head, Cylinder Head Gasket, Cylinder Head Flange/Threaded Ring, Alignment Ring, Wear Plate, Cylinder Head Plug, Liner Flange, Liner Lock, Mud Baffle
| Brand | Mud Pump Models |
| Bomco | F500 | F800 | F1000 | F1300 | F1600 | F1600L | F1600HL | F2200HL |
| Emsco | F500 | F800 | F1000 | FB1300 | FB1600 | FA1600 | FC1600 | FC2200 |
| Gardner Denver | TEE165 | PAH275 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PZ-11 7500PSI |
| National | JWS340 | JWS400 | 7P50 | 8P80 | 9P100 | 10P130 | 12P160 | 14P220 |
| Oilwell | A350PT | A600PT | A850PT | A1100PT | A1400PT | A1700PT | | |
| Ideco | T500 | T800 | T1000 | T1300 | T1600 | | | |
| Weatherford | MP5 | MP8 | MP10 | MP13 | MP16 | E447 | E2200 | |
| Ewco | W440 | W446 | WH1612 | WH2215 | WH1312 | | | |
| HONGHUA | HHF-500 | HHF-800 | HHF-1000 | HHF-1300 | HHF-1600 | HHF-1600HL | HHF-220HL | |
| Brewster | B-1000-T | B-1100-T | B-1300-T | B-1600-T | | | | |
| LS National | 3NB-500C | 3NB-800C | 3NB-1000C | 3NB-1300C | 3NB-1600 | | | |
| Wirth | TPK1000 | TPK1600 | TPK2000 | | | | | |
| Driimec | 7TS-600 | 8T-800 | 9T1000 | 10T1300 | 12T1600 | 10D2C | 8D1S | |
| Upetrom | 3PN-1000 | 3PN-1300 | 3PN-1600 | 3PN-2000 | | | | |
| OPI | 350-D | 350-GD | 500-DC | 700-HDL | 1000-HDL | | | |
| American Block | K800 | K1000 | K1300 | K1600 | K2200 | | | |
| GASO/Wheatly | 1550 | 1560 | 1563 | 1654 | 1742 | 1753 | 1874 | 1849 |
| Gardner Denver | FY-FXD | FK-FXK | FD-FXX | FG-FXG | FQ-FXQ | FF-FXP | KG-KXG | |
| | | | | | | | | |

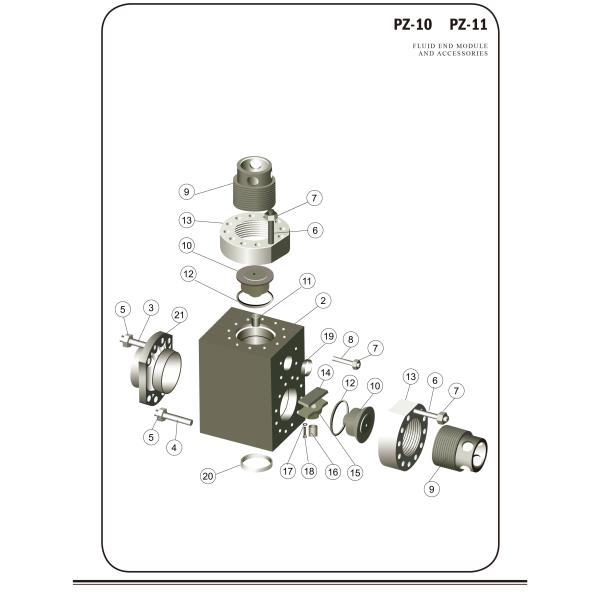

| Item | Part No. | Description | Qty
per Pump |
| 1 | MK-202PZL029B | Fluid Module, Studded (Included Items 2 – 8) | (3) |
| 2 | Fluid Module, Only | 3 |
| 3 | MK-201PZL110 | Stud – Frame, Liner Clamp | 24 |
| 4 | MK-205PZL110 | Stud – Frame | 24 |
| 5 | MK-50B36 | Nut – Frame, Liner Clamp | 60 |
| 6 | MK-204PZL110 | Stud – Threaded Ring | 72 |
| 7 | MK-50B34 | Nut – Threaded Ring, Discharge Manifold | 84 |
| 8 | MK-202PZL110 | Stud – Discharge Manifold | 12 |
| 9 | MK-200PZL587 | Cap – Valve Lock | 6 |
| 10 | MK-200PZL147 | Cover – Valve | 6 |
| 11 | MK-2007674 | Valve Guide Bushing – Discharge | 3 |
| 12 | MK-204PZL715 | Gasket – Valve Cover | 6 |
| 13 | MK-200PZL387 | Threaded Ring | 6 |
| MK-200PZL483A | Valve Guide Assembly (Included Items 14 – 18) | (3) |
| 14 | MK-2011701 | Retainer Plate | 3 |
| 15 | MK-200PZL483 | Valve Guide – Suction | 3 |
| 16 | MK-2007674 | Valve Guide Bushing – Suction | 3 |
| 17 | MK-95W2 | Lock Washer – Valve Guide / Suction | 6 |
| 18 | MK-655EE06S | Bolt – Valve Guide / Suction | 6 |
| 19 | MK-25AL35 | Gasket – Discharge Manifold | 3 |
| 20 | MK-25BE41 | Gasket – Suction Manifold | 3 |
| 21 | MK-200PZL455 | Liner Clamp | 3 |
|
|
Gardner Denver PZK(PZ10) Drilling Mud Pump Fluid End Parts Made in China Images
|
